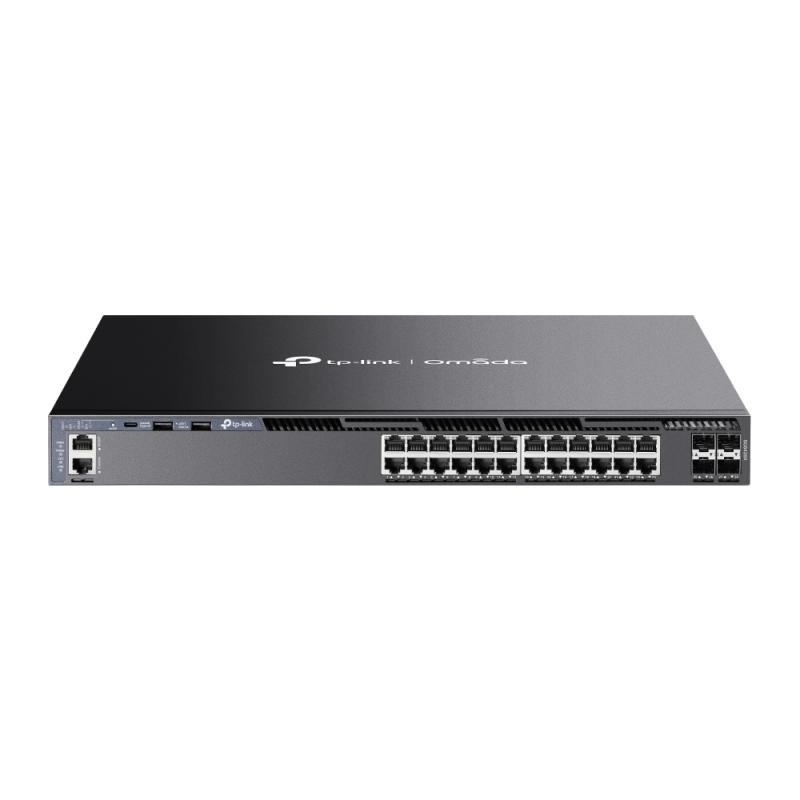

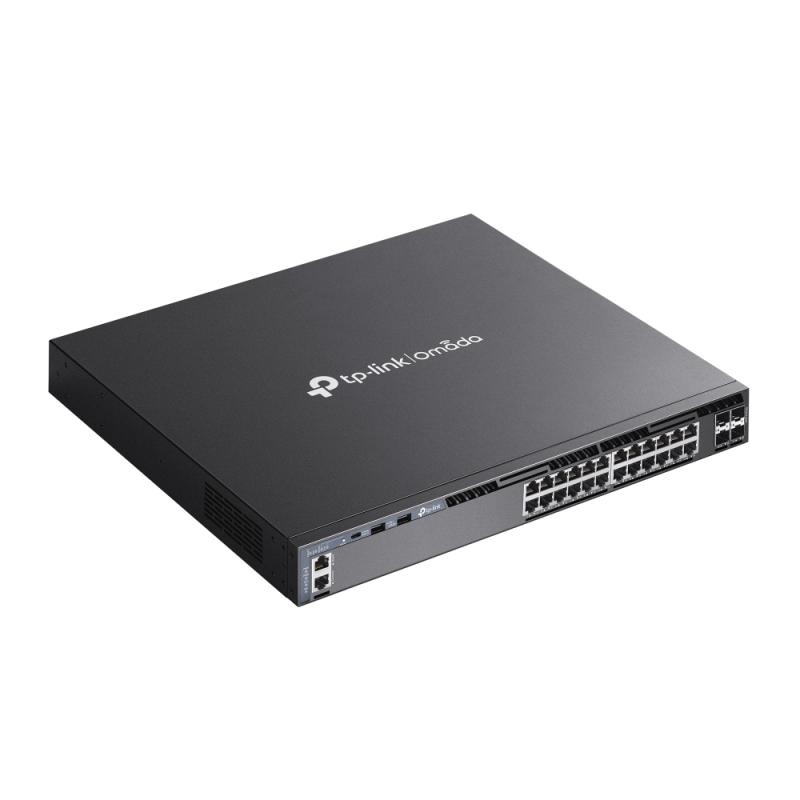

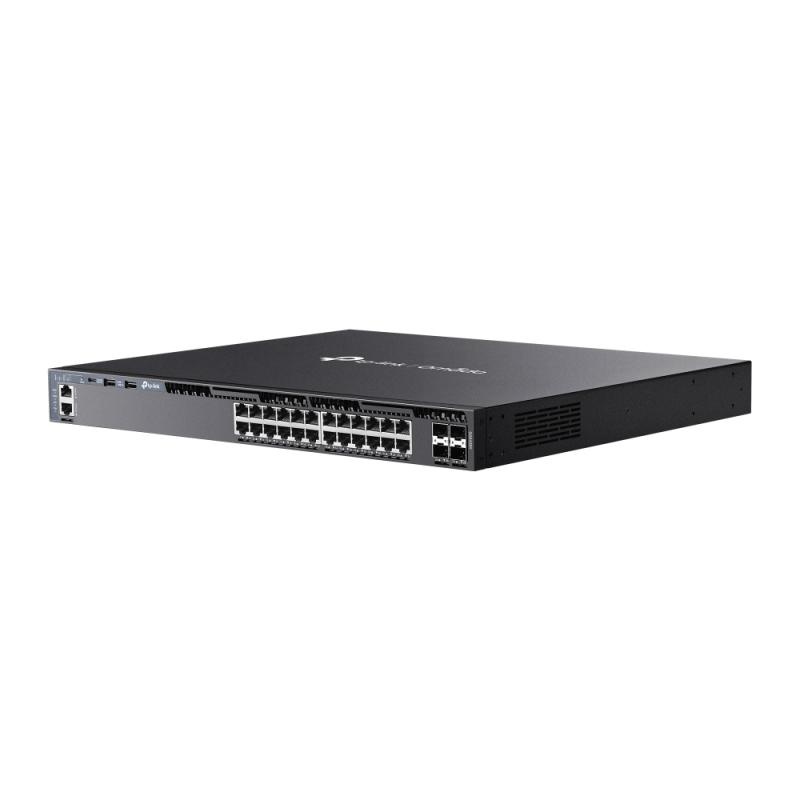

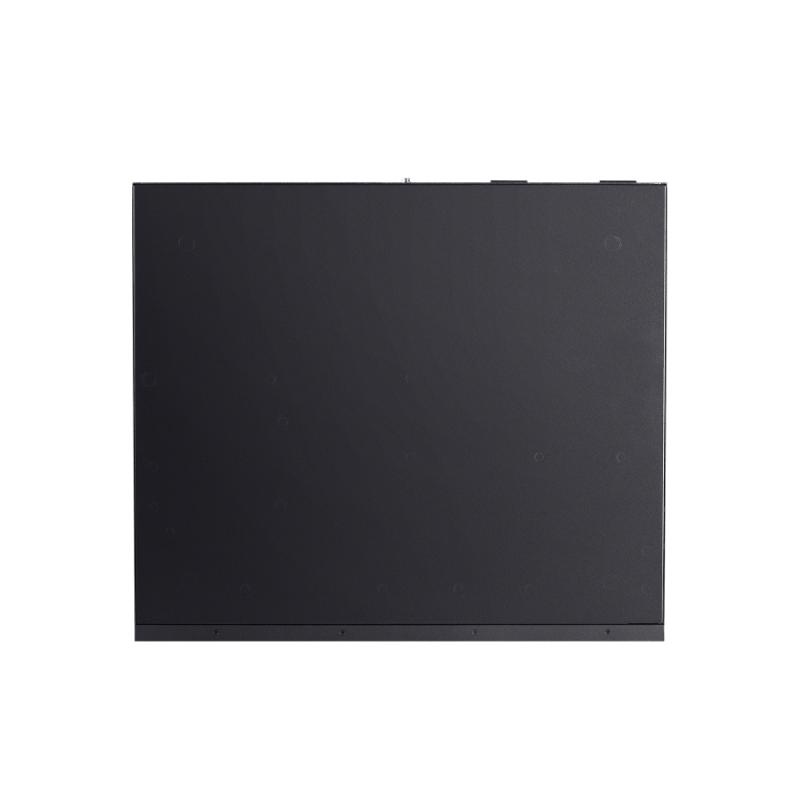

TPL SW Omada 24-Port Gigabit Managed
9.646,00 RON
Costurile de livrare nu sunt incluse
Plateste in rate
318,16 RON
Rata lunara
Calculator de rate
Cum te putem ajuta?
Descriere
Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies
Detalii
SKU
TL-SG6428X
EAN
4895252501476
Categorii
Brand
Rate limiting
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Jumbo frames support
Yes
MAC address table
32000 entries
Rack mounting
Yes
ARP inspection
Yes
Switch layer
L3
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
IGMP snooping
Yes
Static route
Yes
Stackable
Yes
Flow control support
Yes
Web-based management
Yes
Spanning tree protocol
Yes
Loop protection
Yes
Multicast support
Yes
10G support
No
Access Control List (ACL)
Yes
Configuring Location Settings (CLI)
Yes
IP routing
Yes
SSH/SSL support
Yes
Jumbo frames
9000
Port mirroring
Yes
Basic switching RJ-45 Ethernet ports quantity
24
System event log
Yes
Power over Ethernet (PoE)
No
AC input frequency
50/60 Hz
Switching capacity
128 Gbit/s
Cloud-managed
Yes
Broadcast storm control
Yes
Number of VLANs
4000
Authentication type
RADIUS
SFP+ module slots quantity
4
Number of fans
4 fan(s)
Layer
Layer-2
Console port
RJ-45/USB Type-C
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Authentication
Auto VLAN, MAC-based authentication, Port-based authentication
Forwarding rate
95.2 Mpps
Porturi RJ 45
24× Gigabit RJ45 Ports
Packet buffer memory
3 MB
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
DHCP features
DHCP relay, DHCP snooping, DHCPv6 snooping
IGMP entries
2048
Heat dissipation
96.91 BTU/h
Porturi SFP
4× 10G SFP+ Slots
Product colour
Black
Manual
Yes
LED indicators
Yes
Operating temperature (T-T)
-5 - 40 C
Storage temperature (T-T)
-40 - 70 C
Depth
380 mm
Width
440 mm
Height
44 mm
Operating relative humidity (H-H)
10 - 90%
Cables included
AC, LAN (RJ-45)
Ethernet LAN data rates
10,100,1000 Mbit/s
Storage relative humidity (H-H)
5 - 90%
USB 2.0 ports quantity
2
Power consumption (max)
28.4 W
Management
Da
Montare in rack
Da
Viteza transfer
Gigabit
Form factor
1U
Rackable
Yes
LAN-Port-Type
Gigabit
LAN-Ports
24
Redundant-PSU
Yes
PoE
Nu
