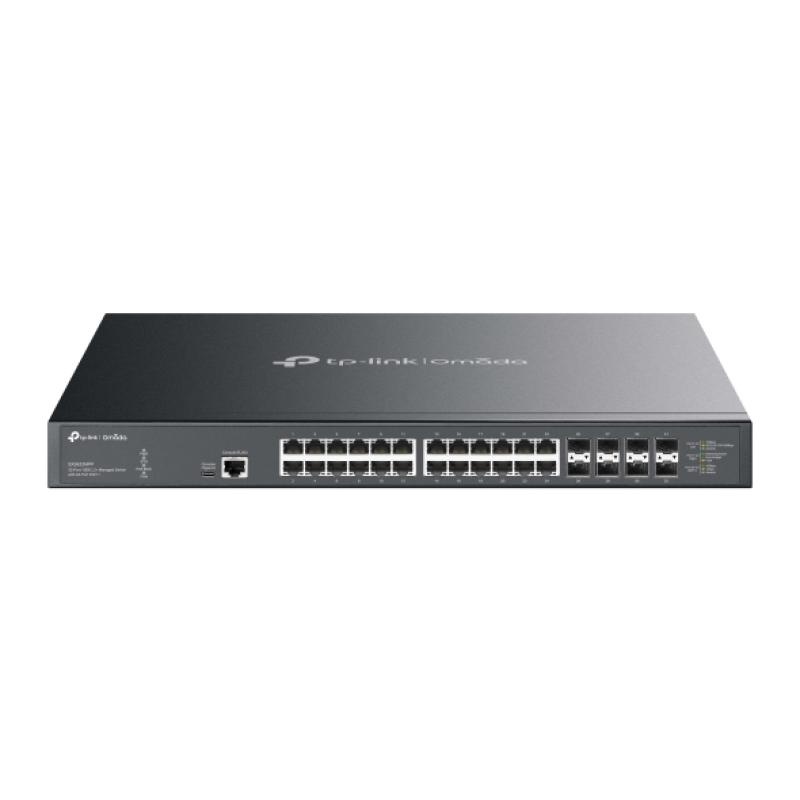

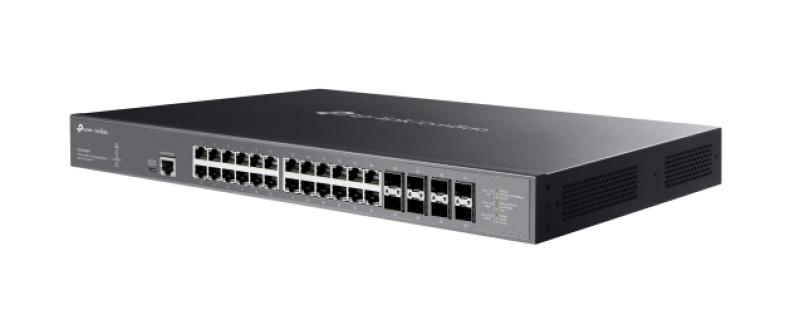

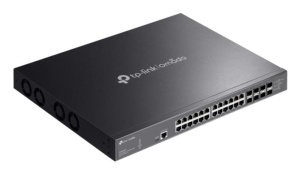

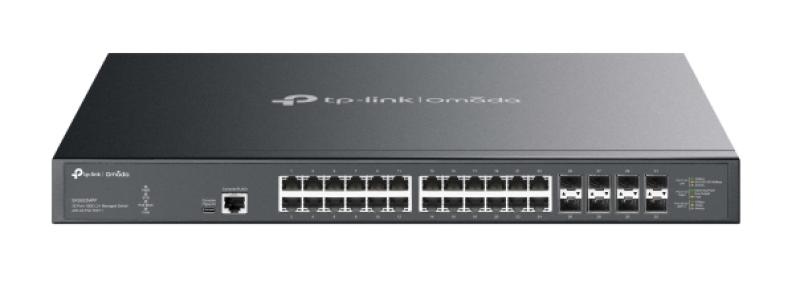

Omada 32-Port 10GBASE-T L2+ Managed Swit
13.229,00 RON
Costurile de livrare nu sunt incluse
Plateste in rate
436,19 RON
Rata lunara
Calculator de rate
Cum te putem ajuta?
Descriere
Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, Fast PoE, Perpetual PoE, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Detalii
SKU
SX3832MPP
EAN
8885020622676
Categorii
Brand
Rate limiting
Yes
VLAN support
Yes
Power over Ethernet (PoE)
Yes
Quality of Service (QoS) support
Yes
Jumbo frames support
Yes
MAC address table
32000 entries
Rack mounting
Yes
ARP inspection
Yes
Switch type
Managed
10G support
Yes
IGMP snooping
Yes
Static route
Yes
Stackable
Yes
Web-based management
Yes
Spanning tree protocol
Yes
Auto MDI/MDI-X
Yes
Link aggregation
Yes
Multicast support
Yes
Auto-negotiation
Yes
Access Control List (ACL)
Yes
Configuring Location Settings (CLI)
Yes
Port mirroring
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Static port security
Yes
System event log
Yes
Rack mount kit
Yes
CPU defense
Yes
AC input frequency
50/60 Hz
Switch layer
L2+
Cloud-managed
Yes
Broadcast storm control
Yes
Jumbo frames
9
Number of VLANs
4000
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
DoS attack prevention
Yes
Firmware upgradeable
Yes
Rubber feet
Yes
Switching capacity
640 Gbit/s
Screws included
Yes
IPv4 routes
48
IPv6 routes
48
2.5G Ethernet (copper) ports quantity
24
Authentication type
AAA, RADIUS, TACACS+
Number of queues
8
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Number of fans
4 fan(s)
Layer
Layer-2
Packet buffer memory
24 MB
Forwarding rate
240 Mpps
MIB support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Unified static configuration
Yes
Multicast Listener Discovery (MLD) snooping
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Address Resolution Protocol (ARP) entries (max)
510
Virtual LAN features
MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Heat dissipation
3444.7 BTU/h
Packaging content
Console Cable
Mounting brackets included
Yes
Fanless
No
Fast Ethernet (copper) ports quantity
24
Gigabit Ethernet (copper) ports quantity
24
Console port
RJ-45/USB Type-C
Installed SFP+ modules quantity
8
10G Ethernet (copper) ports quantity
24
Power saving mode (EEE)
Yes
AC input voltage
110 - 240 V
Power supply included
No
Power source
AC/PoE
Power over Ethernet 4PPoE (PoE++) ports quantity
24
Power over Ethernet (PoE) power per port
90 W
Total Power over Ethernet (PoE) budget
770 W
Device link detection protocol (DLDP)
Yes
IPv4 & IPv6 features
Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Queue scheduling algorithms
Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
Authentication
Guest VLAN
Sustainability organizations
Accountability
Product colour
Black
Quick start guide
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
LED indicators
Yes
Power consumption (typical)
953.7 W
Operating temperature (T-T)
-5 - 45 C
Storage temperature (T-T)
-40 - 70 C
Depth
330 mm
Width
440 mm
Height
44 mm
Housing material
Metal
Operating relative humidity (H-H)
10 - 90%
Cables included
Power
Storage relative humidity (H-H)
5 - 90%
Power consumption (max)
1010.2 W
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Form factor
DIN rail
Rackable
No
LAN-Port-Type
10Gigabit
LAN-Ports
16
Redundant-PSU
Yes
