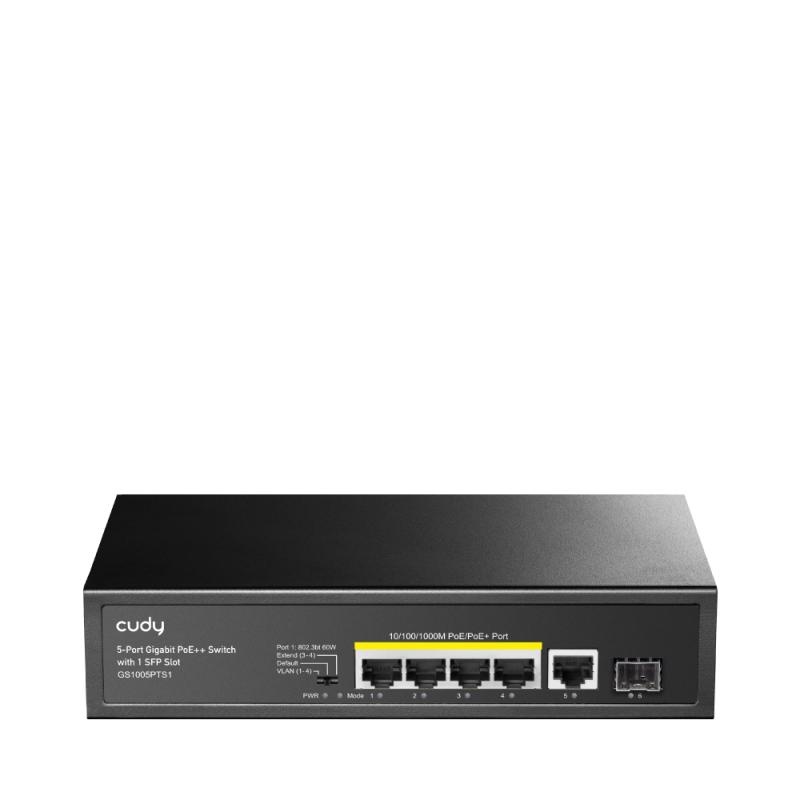

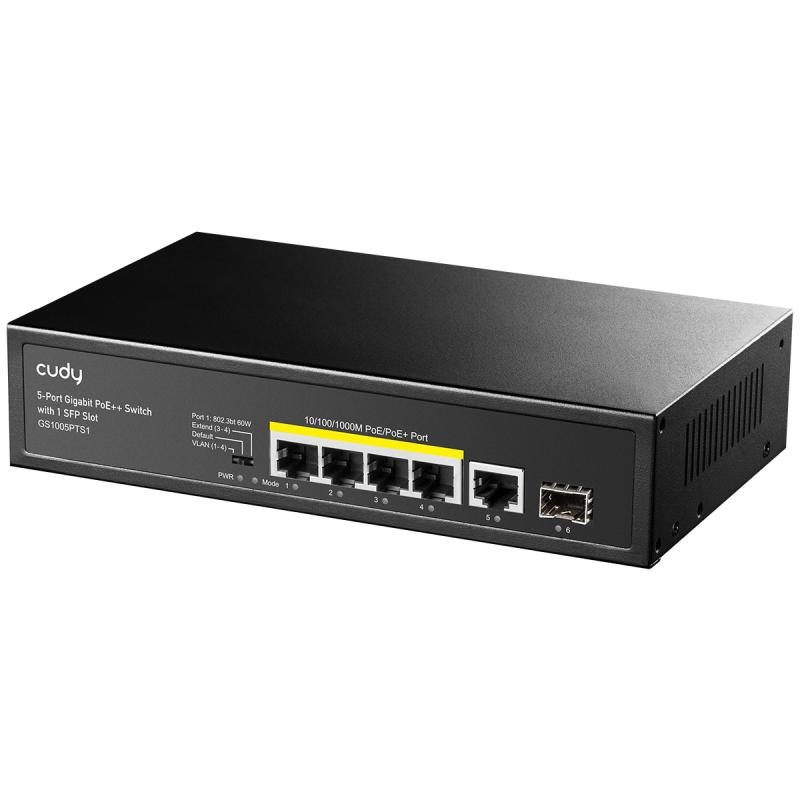

CUDY 5-Port Gigabit PoE+ Switch 1 SFP
188,00 RON
Costurile de livrare nu sunt incluse
Cumpara acum, plateste in 30 de zile
Afiseaza mai mult
Cum te putem ajuta?
Descriere
CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply
Detalii
SKU
GS1005PTS1
EAN
6971690791704
Categorii
Brand
VLAN support
Yes
Power over Ethernet (PoE)
Yes
Jumbo frames support
Yes
Rack mounting
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
Store-and-forward
Yes
Flow control support
Yes
Stackable
No
Switching optical modules type
Gigabit Ethernet
Full duplex
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE) ports quantity
4
Wall mountable
Yes
Power connector
AC-in jack
MAC address table
2000 entries
Basic switching RJ-45 Ethernet ports quantity
5
Fanless
Yes
Installed SFP modules quantity
1
Installed SFP+ modules quantity
1
Half duplex
Yes
Mean time between failures (MTBF)
100000 h
Jumbo frames
9216
Layer
Layer-2
Combo SFP ports quantity
1
Switching capacity
12 Gbit/s
Uplink ports quantity
1
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet plus (PoE+) ports quantity
1
Fiber type
Multi-mode
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Packet buffer memory
1 MB
Output voltage
52 V
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Input current
1.25 A
Output current
1.25 A
Product colour
Black
Manual
Yes
Master (outer) case width
505 mm
Master (outer) case length
320 mm
Master (outer) case height
402 mm
LED indicators
Activity, Link, Power
Package type
Box
Plug and Play
Yes
Master (outer) case net weight
19 kg
Throughput
8.928 Mpps
Operating temperature (T-T)
-20 - 50 C
Weight
600 g
Products per master (outer) case
20 pc(s)
Package depth
190 mm
Storage temperature (T-T)
-40 - 85 C
Package height
60 mm
Depth
118 mm
Width
200 mm
Height
44 mm
Package width
245 mm
Package weight
900 g
Housing material
Metal
Operating relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3048 m
Cables included
AC
Ethernet LAN data rates
10,100,1000 Mbit/s
Storage relative humidity (H-H)
5 - 90%
Rackable
No
LAN-Port-Type
Gigabit
LAN-Ports
5
Redundant-PSU
No
